CHIRP External Sounders
CHIRP sounders are external sonar units. The CHIRP transducer plugs into the sounder and the sounder box is connected to a multi-function display through a high-speed cable.
These sounders offer premium features such as support for dual-band transducers which are often not found in integrated fishfinder displays with their built-in sonar circuity.
Most sounders can only be used with a display of the same brand. The table at the bottom of this page contains a summary of all available CHIRP sounders.
FURUNO CHIRP SOUNDERS

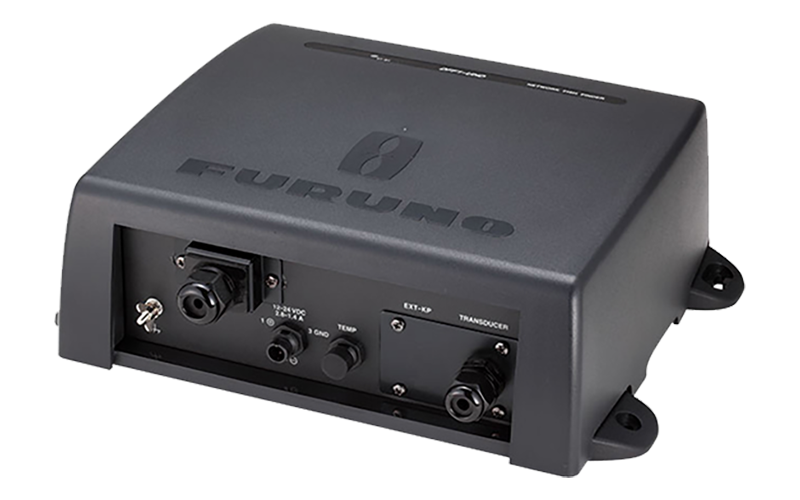

Furuno currently offers only one CHIRP sounder, the DFF1-UHD.
This sounder is designed for use with Airmar dual-band Low/High CHIRP transducers with a wide beam.
It can connect to NavNet TZtouch and NavNet 3D displays.
GARMIN CHIRP SOUNDERS
Garmin offers three dual-band CHIRP sounders, the GCV-10, the GSD 25 and the GSD 26.
These sounders can be connected to select echoMAP or GPSMAP displays by a Garmin Network cable.
The GSD 25 and GSD 26 use standard Airmar dual-band transducers, and the GCV 10 comes with a custom Garmin dual-band transducer.
HUMMINBIRD CHIRP SOUNDERS

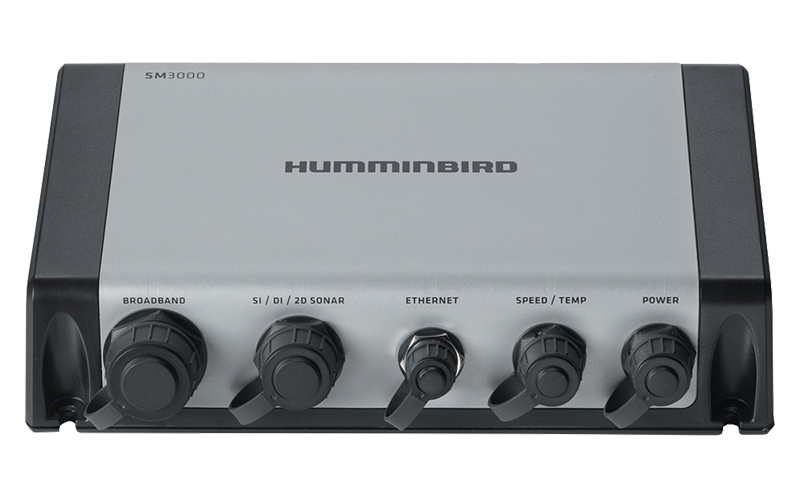

Humminbird currently offers only one CHIRP sounder, the SM3000.
This sounder is designed for use with the Onix and Helix series of multi-function displays.
LOWRANCE CHIRP SOUNDERS
Lowrance currently offers only one CHIRP sounder, the SonarHub.
This sounder is for use with Airmar single-band CHIRP transducers in the Low, Medium or High bands.
It connects to compatible HDS-series displays.
RAYMARINE CHIRP SOUNDERS
Raymarine offers a wide range of CHIRP sounders - the CP100, CP200, CP370, CP470 and CP570.
SIMRAD CHIRP SOUNDERS
Simrad offers the SonarHub external CHIRP sounder for single-band transducers in the Low, Medium and High bands, the BSM-3 external CHIRP sounder for high-performance dual-band transducers in the Low/Medium or Low/High bands, and the S5100 which can handle three CHIRP bands simultaneously.
Complete CHIRP Sounder List
Current Models
| Brand | Model | Type | Frequency Bands | Compatible Displays |
|---|---|---|---|---|
| Furuno | DFF1-UHD | Dual-Band | Low 30-70 kHz; High 175-225 kHz | NavNet TZtouch, NavNet 3D |
| Garmin | GCV 10 | Dual-Band | Custom 445-475 kHz; 805-840 kHz | echoMap and GPSMAP |
| Garmin | GSD 25 | Dual-Band | Low/Medium or Low/High | GPSMAP |
| Garmin | GSD 26 | Dual-Band | Low/Medium or Low/High | GPSMAP |
| Humminbird | SM3000 | Dual-Band | Low/Medium or Low/High | Onix, Helix |
| Lowrance | SonarHub | Single-Band | Low 40-60 kHz; Medium 85-145 kHz; High 130-210 kHz | Lowrance HDS Gen 1, HDS Gen 2, HDS Gen 2 Touch |
| Raymarine | CP100 | Single-Band | Centered at 200 kHz | aSeries, cSeries, eSeries, eS Series, gS Series |
| Raymarine | CP200 | Single-Band | Not documented | aSeries, cSeries, eSeries, eS Series, gS Series |
| Raymarine | CP470 | Dual-Band | 25-255 kHz | aSeries, cSeries, eSeries, eS Series, gS Series |
| Raymarine | CP570 | Dual-Band | 25-255 kHz | aSeries, cSeries, eSeries, eS Series, gS Series |
| Simrad | SonarHub | Single-Band | Low 40-60 kHz; Medium 85-145 kHz; High 130-210 kHz | NSS, NSE, NSO |
| Simrad | BSM-3 | Dual-Band | Low 25-45 kHz or 40-60 kHz; High 130-210 kHz | NSS, NSE, NSO |
| Simrad | S5100 | Dual-Band plus Single-Band | 28-250 kHz | NSE, NSO |
Discontinued Models
