CHIRP Accessories
Some CHIRP transducers come with a bare-wire cable and need an adapter box for connection to a sounder or fishfinder. Adapters are available for both Garmin and Raymarine.
For other brands of equipment without adapters a splice can be used to join the transducer cable to another cable with the correct connector.

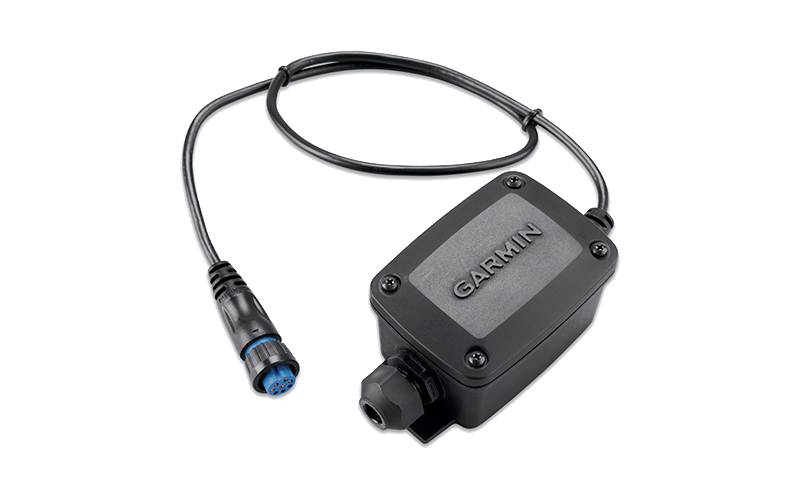

Garmin 8-Pin Adapter 010-11613-00
To connect single-band CHIRP transducers to Garmin equipment which uses a blue 8-pin connector.

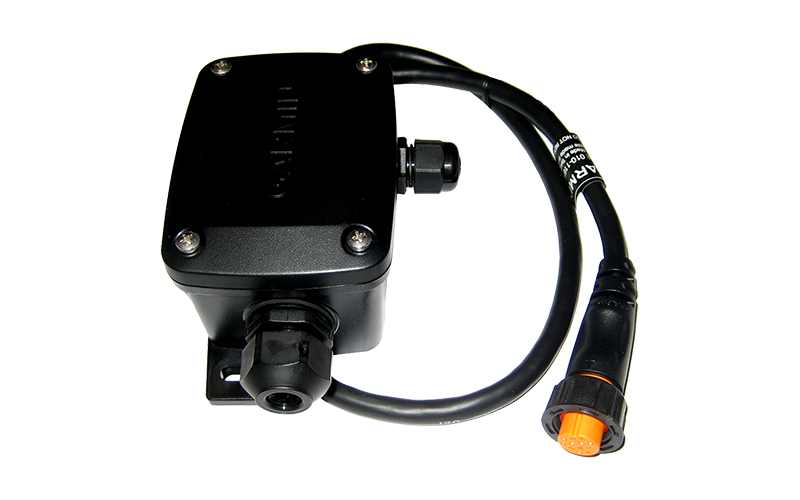

Garmin 12-Pin Adapter 010-11613-10
To connect dual-band CHIRP transducers to Garmin equipment which uses an orange 12-pin connector.
Raymarine 11-Pin Adapter 33-969-01
To connect single-band or dual-band CHIRP transducers to Raymarine equipment which uses an 11-pin connector.

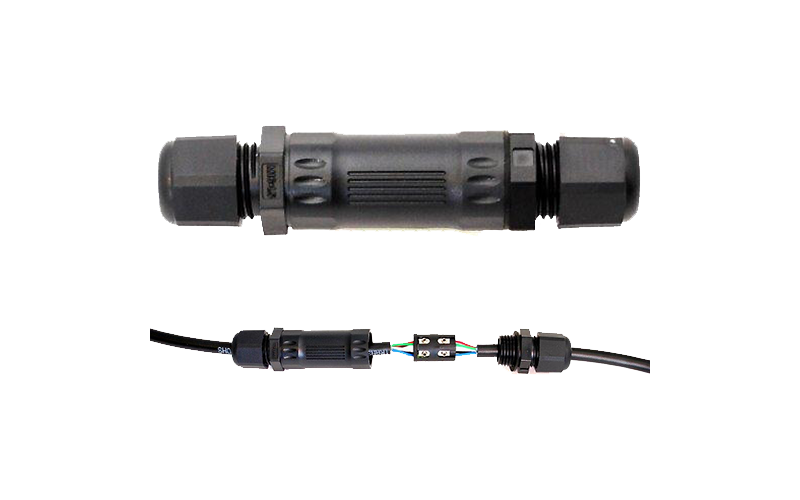

Cable Splice
This cable splice is available for 6-wire and 10-wire cables and provides a secure, waterproof method of joining two cables.
CHIRP Mix and Match Transducers
Many Airmar CHIRP transducers have adopted a Mix and Match system
