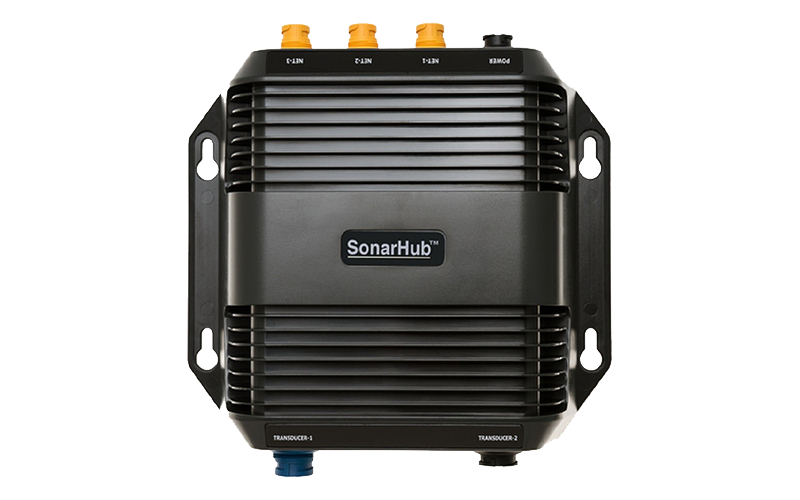

The Lowrance SonarHub is a single-band CHIRP network sounder for HDS-Series displays.
It is compatible with Airmar single-band CHIRP transducers in the Low, Medium or High bands.
Connection to the display is by a Lowrance Ethernet cable.
This device can also be used with Simrad NSS, NSE and NSO displays
Specifications
| Feature | Specification |
|---|---|
| Part Number | 000-11142-001 |
| Frequency Bands | Low 40-60 kHz; Medium 85-145 kHz; High 130-210 kHz |
| Transducer Connector | Blue 7-Pin connector (Transducer-1) |
| Transducer Compatibility | For use with any Airmar 600W single-band CHIRP transducer. |
| Display Connection | Lowrance Ethernet |
| Compatible Displays | Lowrance HDS Gen 1, HDS Gen 2, HDS Gen 2 Touch |
| Dimensions | 207mm (8.15") x 204mm (8.03") x 57mm (2.24") |
| Weight | 0.9 kg (2 lbs) |
| Power Supply | 12V DC or 24V DC |
| Other non-CHIRP Functionality | Supports StructureScan transducers and conventional 50/83/200 kHz transducers |
